55kW Static Pigment Milling Machine 1200kg Wet Bead Milling

100 L 55kW Durable Disc Type Static Discharging Great Fineness Bead Mill Machine

The main introduction:

1. High independent technology: These sand grinding mills mainly consist of chamber and disc dispersing system, input system. output system, cooling system, lubrication system and driving system.The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents.Machines operate more stable and life-long with high precision CNC (American imported 4 axis machine).

2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.

4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

4. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

5. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

6. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, pigment and dyes, printing inks, gravure inks, food and food processing,non-metallic minerals, titanium dioxide,etc.

The working principle:

1. The materials are pumped to pipe to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber

2. The material and the grinding medium in the chamber are stirred by the high-speed rotating disperser,

3. The solid particles in the material and the grinding medium produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .

4. The material passes through a dynamic separator to separate the grinding medium and flows out of the discharging pipe.

The Technical Data:



The Configuration instructions:



1. Outer Chamber: 304 stainless steel

2. Inner Chamber: silicon carbide ceramics, 9Cr18Mo alloy steel, SUS304 stainless steel for choice.

3. Dispersing shaft: 40Cr with hard chromium plating

4. Dispersing disk: 304 stainless steel, PU coated with 304 stainless steel, Cr12MoV alloy steel for choice.

5. Mechanical seal: double end mechanical seal with pressure of 0.45 Mpa,(patent technology)

6. Feeding and discharging end covers on the chamber: 304 stainless steel

7. Static discharge screen ring: 304 stainless steel screen ring with 304.Gaps: 0.5mm.

8. Feeding pump: diaphragm pump(G1/1.5', brand: Ingorsoll Rand)

9. Alarming system: applied for each machines or for your choice

10.Operating control: button type or PLC for your choice

11.Fasteners and connecting parts: Stainless steel clamp-type connecting parts

12. Operation type: PLC touch or button type





This series from 5L to 300L

"SUPER" SP series of Bead Mill
Type	Working Volume (L)	Power (kW)	Grinding Beads (mm)	Throughput (kg/h)
SP5	5	7.5	0.3-3.0	20-200
SP15	15	15	0.3-3.0	50-500
SP30	30	30	0.3-3.0	70-700
SP50	50	37	0.3-3.0	100-1000
SP100	100	55	0.3-3.0	300-3000
SP250	250	75	0.3-3.0	450-4500
SP300	300	90	0.3-3.0	550-5500

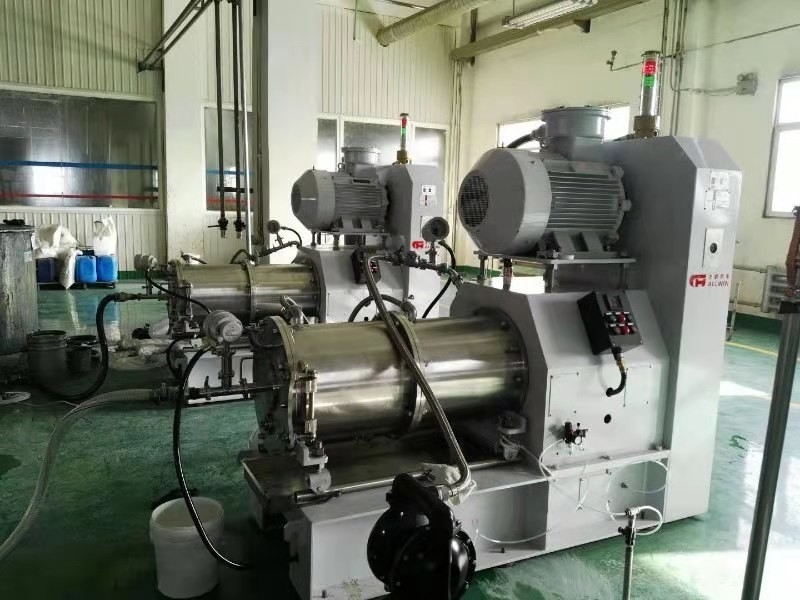

The detailed production show:

The company advantages:

• Long history and plentiful experiences with 25 year
• Master the core technology of dispersing and grinding
• With imported four –axis Haas machining center
• Have laboratory for grinding test and detection the fineness.
• With ISO9001 certification and more than 11 patents of sand mill
• Widely used in industries : Paint and Coating ,Pigment and dyestuffs, Printing inks, Gravure inks, Medicine and Cosmetics, food and food processing, Pesticide and Agrochemical industry, Hi-Tech nanometer products.



The packing and delivery (firstly anti-abrasion film and packed in wooden boxes) ,then FCL or LCL container by Seashipping







FAQ:



Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.



Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours

from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!



Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.



Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.



Q5: What is your after-sale service?

A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.



Q6: How is the payment?

A6: Firstly paid the deposit, then paid the balanced before shipping.





Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3.The control system will matching of different demand, such as PLC or traditional Button type.

If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.





•
