Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine

Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine
Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine
Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine
Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: AP30 AP50
Minimum Order Quantity: 1set
Price: USD4000--USD28000/set
Packaging Details: wooden boxes
Delivery Time: 20-30 working days
Payment Terms: T/T, Western Union, MoneyGram
Get Best Price Contact Now
Detail Information
Material Of Inner Chamber: Silicon Carbide Ceramics Power: 37kW
Fineness: 5-10um Explosion: Non EX-proof
Color: Blue And White Electric: ABB Or Delixi
Capacity: 500-800kG Weight: 1500kg

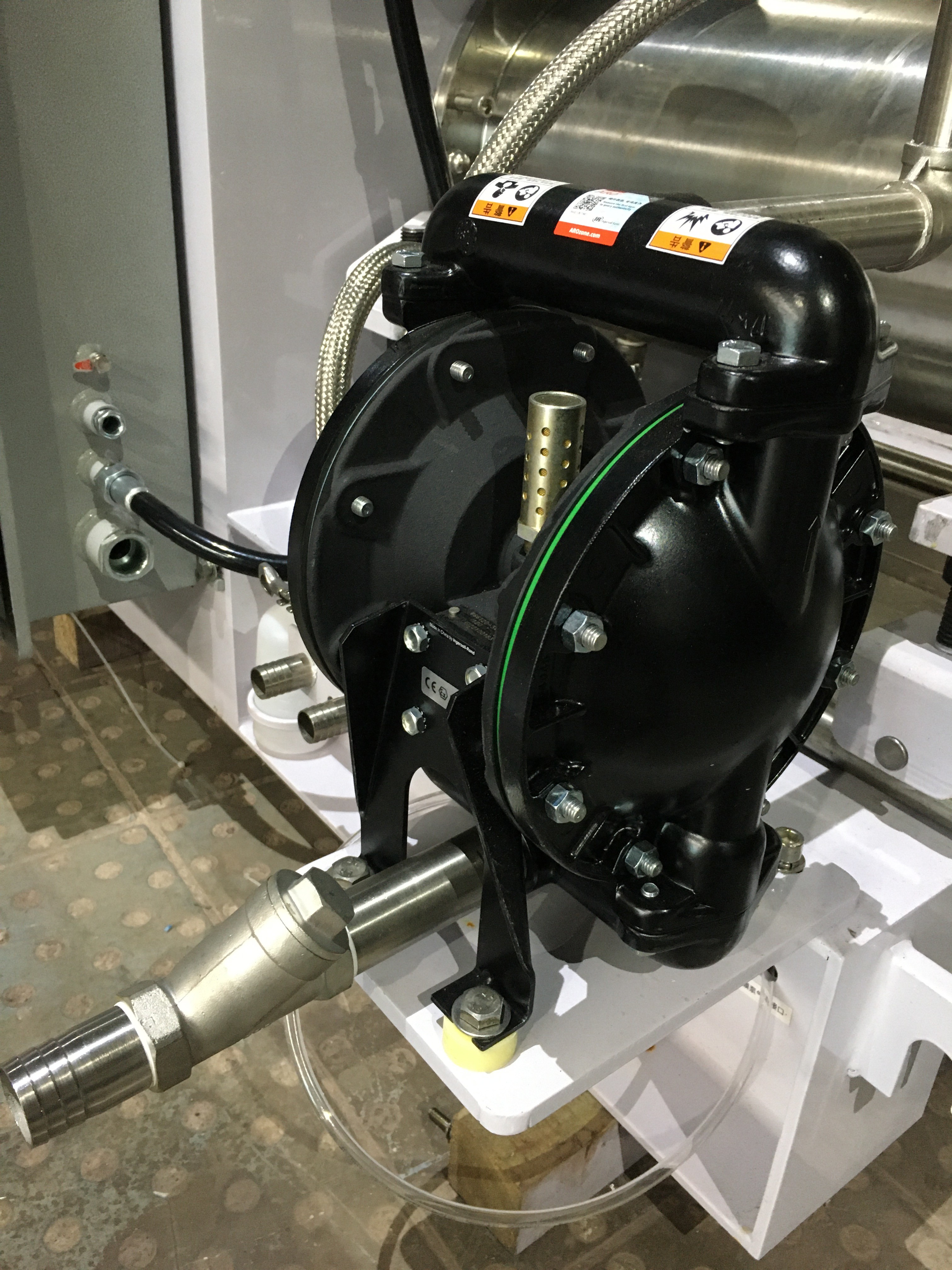

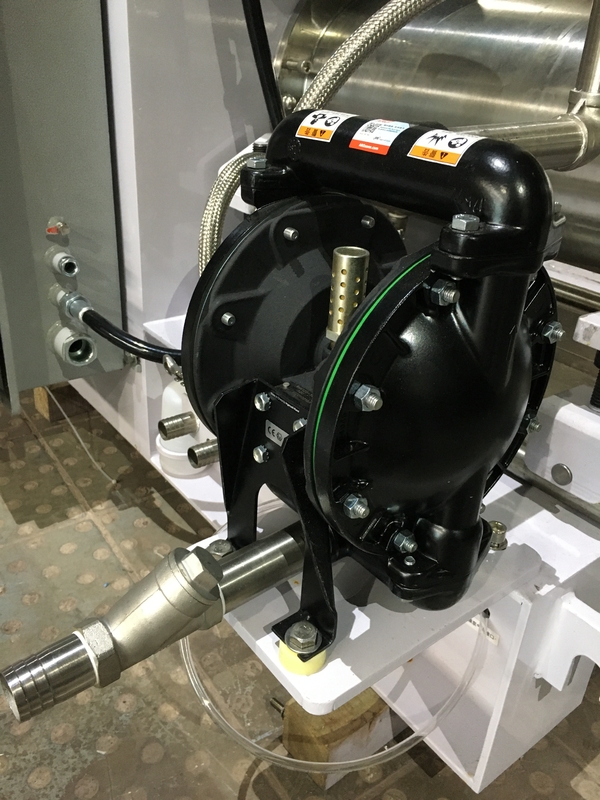

Feed Pump: 1ARO Diagramgh Pump Grinding Media: 1.0-1.4mm Beads
Highlight:

30kW SiC pin grinding machine

,

5um pin grinding machine

,

5um oil production machine

Product Description

Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine



This AP series is higher 20% productivity than SP series,  widely used in water base Paint Coating inks, high value productions, with the Sic Inner chamber, low temperature and more wearable and keep white color for products.



 The main parameter:

NO. Main parameter AP50 Note
1 Main motor power(kW) 37 3phase,380V 50Hz
2

Effective Volume

(L)

 50
4 Water presure Mpa 0.3
5





Cooling water consumption

(L/min)





2.5 -3m3/h

The lower limit can be

selected for the water consumption, in case that the cooling water temperature is lower than 10℃.
6 Overall dimension (mm) 2000*820*1900
7 Weight (kg) 1500

The Configuration instructions

  NO. Main parts AP 50  Wet Bead grinder Notes
1 Outer chamber 304 stainless steel
2 Inter chamber silicon carbide ceramics
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk 304 Stainless steel
5 Mechanical seal Double Mechanical seal with Pressure of 0.45 Mpa
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pges
7 Static discharge screen ring 304 stainless steel screen ring with 304.Gaps: 0.5mm.
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system


9 Feeding pump without pump,with appliance parts
10 Oil box Non-Vision the inner box
11 Appliance configuration Non Explosion-proof machine, suitable for water base materials, explosion-proof motor 30kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with Non EX-proof electrical contacts.
12 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

 Quick and convenient

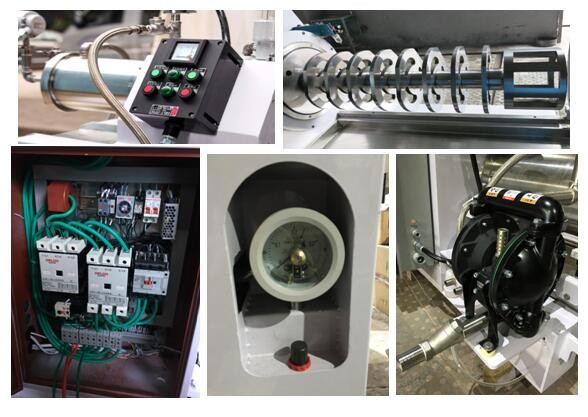

The detailed production show:

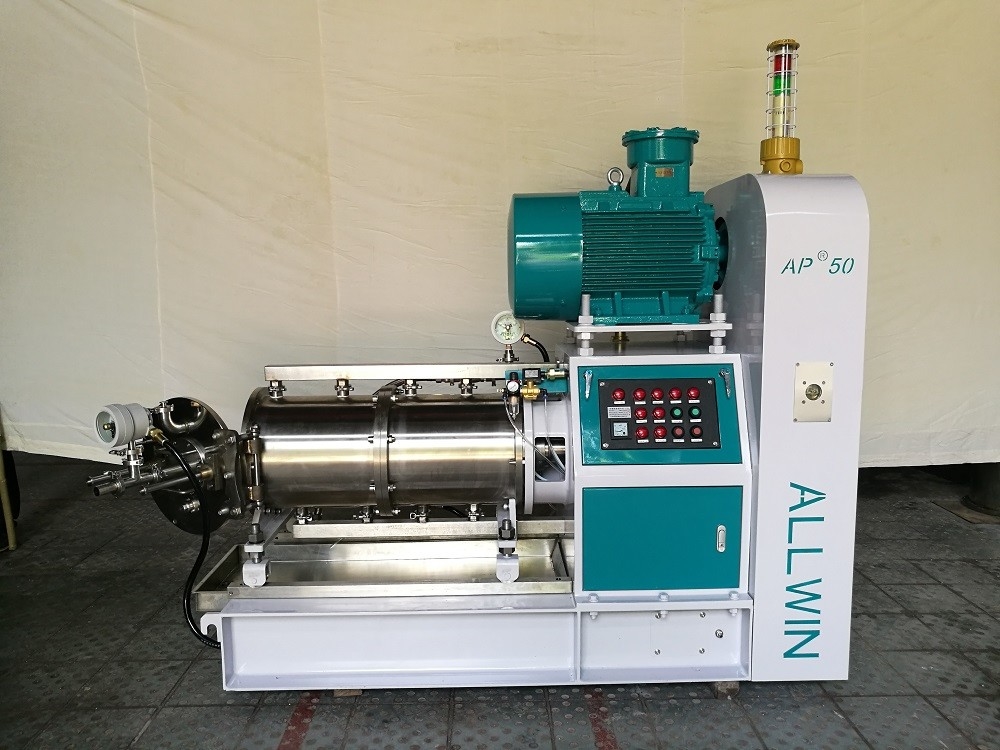

Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine 0

Enegy Saving 30kW SiC Grinding Machine 5-10um Ink Production Machine 1
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity, production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be selected according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
