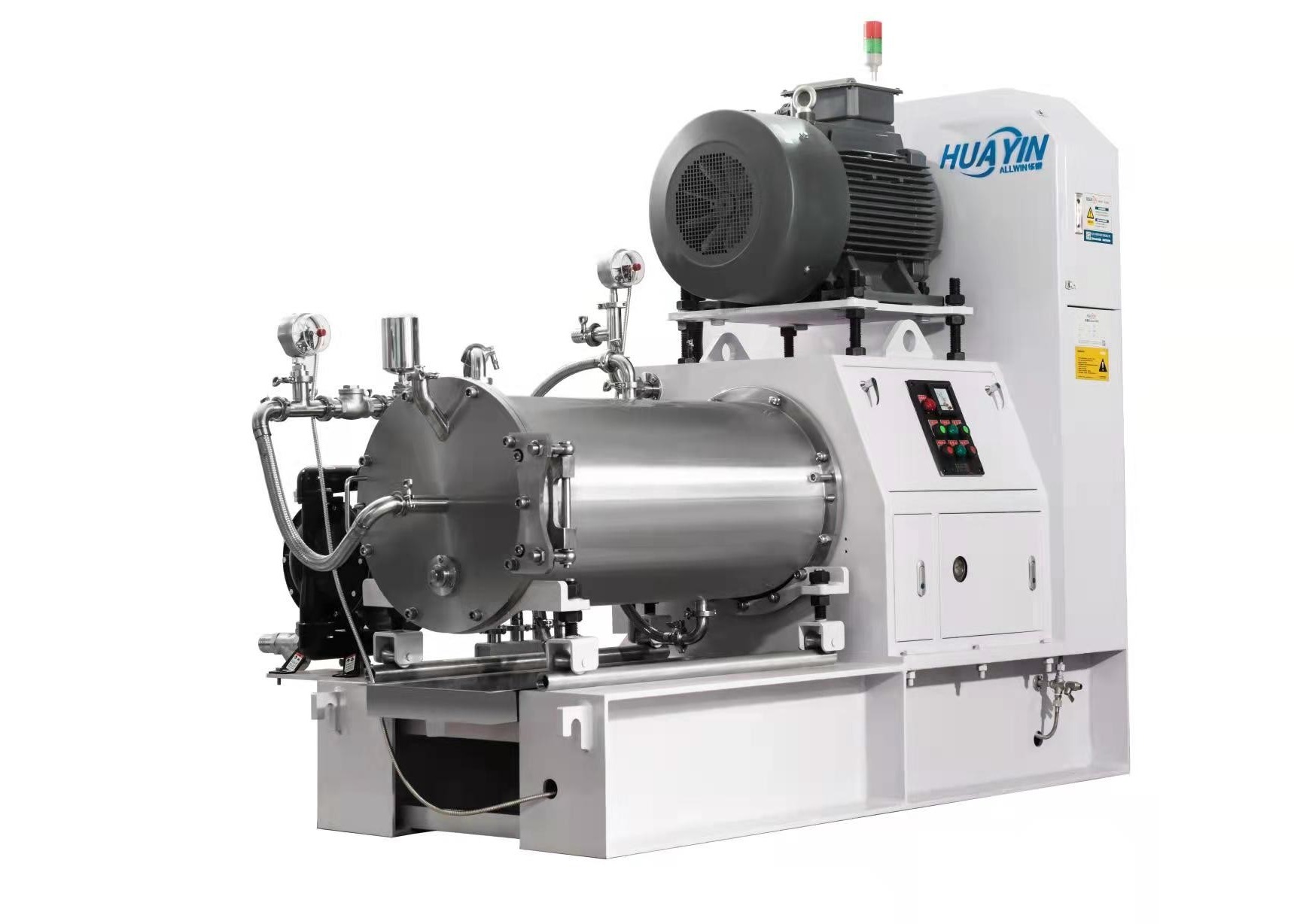

HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP

HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP
HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP
HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP
Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: HZPLUS250
Minimum Order Quantity: 1set
Price: USD130000--USD250000/set
Packaging Details: Wooden boxes
Delivery Time: 30-40 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Get Best Price Contact Now
Detail Information
Power: 90KW Voltage: 380V
Litre: 250L Inner Chamber Material: Silicon Carbide Ceramics
Application: Baterry LFP, Dystuff Screen Gap: 0.1mm
Grinding Media: Zirconia Bead Dispersing System: Compound Type
Highlight:

90KW Bead Mill Machine

,

Energy Saving Bead Mill

,

250L Compound type Bead Mill

Product Description

HZPLUS 250 90KW Energy Saving 20% Bead Mill Machine For LFP

Grinding LFP and its prscursor  needs many key and qualified machines to finish with iron separator, as its special requirement, the inner chamber and dispersing system need to ensuring the related materials not containing Fe or other metallic elements.

According to our owned and counterparts' statics, our bead mills can help customer save more electricity fees.


The Configuration instructions

No Main parts HZPLUS 250 Notes
1 Outter chamber 304 stainless steel
2 Inner chamber

Silicon Carbide CeramicS,
stainless steel coated with PU


3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing system zirconia ceramics,stainless steel coated with PU
5 Feeding and discharging end covers on the cylinder  stainless steel coated with PU/ Zirconia
6 Turbine centrifugal separator  zirconia ceramics,stainless steel coated with PU
7 Static discharge screen ring Screen ring with 304.Gaps: 0.3/0.5mm. calculate according to your viscosity or grinding medium
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system


9 Feeding pump 1"/1.5” ARO diaphragm pump; Ingersorand



10

 Appliance configuration  operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves. Ex-proof/ non ex-proof is optional.
11 Maintainance rails

1 set for free




Main processing equipment:
HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP 0
HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP 1
 HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP 2



The Advantages:

L Great flow rate and super fine discharging

High production capacity and high efficiency

Wear-resistant grinding chamber

Double mechanical sealing with research and development indepent technology

High cooling efficiency with multiple cooling

Long time life and low maintenance.

With ISO9001 certification and more than 11 patents of sand mill



The working principle:

The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.

HZPLUS 250 90KW Bead Mill Machine Energy Saving 20% For LFP 3

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.



The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.



If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
