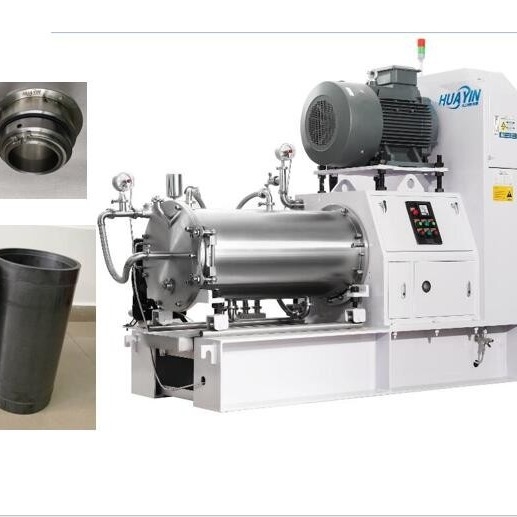

200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Pigment

200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Pigment
200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Pigment
200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Pigment
Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SH20
Minimum Order Quantity: 1set
Price: USD19080--USD55000/set
Packaging Details: Wooden box
Delivery Time: 20-30 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Get Best Price Contact Now
Detail Information
Materials: Silicon Carbide Ceramics Or Stainless Steel Power: 55KW
Volume: 200Liter Fineness: <5um
Application: Flexo Printing Inks Inks Pigment Grinding Bead: 95% Zirconia Beads
Grinding System: Disk Type Structure Feed Pump: 1.5" Pneumatic Diaphragm Pump With ARO
Package: Wooden Box Model: SP Or HZPLUS
Highlight:

200L Sand Grinding Mill

,

Sand Grinding Mill For Flexo Inks

,

Sand Grinding Mill For Inks Pigment

Product Description

200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Inks Pigment

The Disk type structure are widely used in 5-20micon fineness requiriments, and This series disk type could meet different industry's demands, and Allwin have more than 29 years experiece in wet grinding and dispersing, have better processing center,  Also if any confused about the grinding and dispersing, we could have trail test for you ,then offer the detailed report for you.

The Advantages of Super Series:

L    Great flow rate and super fine discharging
High production capacity and high efficiency,Saving enegy 10-30%, higher2 times production capacity.
SIC silicon carbide ceramic inner chamber.or SS304stainless steel and 9Cr18move wereable  steel for option.
Double mechanical sealing with research and development indepent technology
Long time life and low maintenance.
With ISO9001 certification and more than 12patents of Sand grinding mill.

The main parameters of Sand grinding mill:


  Nomain parametersSP200Note
1 Non Explosion-proof motor kW55kW
2

Effective volume of

grinding chamber (L)

200
3Water pressure (MPa)0.3
4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
5Dimensions:L*W*H (mm)2340*1200*2400
6Weight (kg)2500



The main instructions of Sand grinding mill



  No

Main parts


                               SP200 Sand grinidng millNotes
  1Material of External vesselSUS 304 stainless steel
  2Material of Inner grinding vesselzirconia ceramics, stainless steel, pu coated with stainless steeldifferent mateials for choice
   3Material of Dispersing shaft40Cr with hard chromium plating
  4

Material of dispersing system

pin type with ceramics or PUChoose what you need
  5Feeding and discharging end covers on the cylinderSUS 304 stainless steel
  6Static discharge screen ringWire Wound screen ring with 304.Gaps: 0.5 mm.dynamic scraper: alloy steel
  7Mechanical sealDouble end mechanical seal
  8Feeding pump1".5 ARO diaphragm pumpIngersoII Rand



Other instrument components
200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Pigment 0

Workshop site

200L Sand Grinding Mill Disk Type Water Base For Flexo Printing Inks Pigment 1



FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.

If need more detailed information and price ,please contact us soon and warmly welcome to visit us.
