Detail Information

Volume:	5 L	Power:	7.5kW
Grinding Chamber Mterials:	Ceramics, Wearabl Steel, Stainless Steel,etc	Warranty:	1 Year Except Vulnerable Parts
Explosion:	Ex-proof (non Ex-proof Optional)	Discharge Type:	Static Discharge
Fineness:	5-30um	After-sales Service Provided:	Video Technical Support,Online Support
Weight:	600kg	Color:	White, Customized, As Request
Highlight:	Aro Diaphragm Wet Grinding Mill , 600kg Water Wet Grinding Mill , 600kg Water bead grinding machine

Product Description

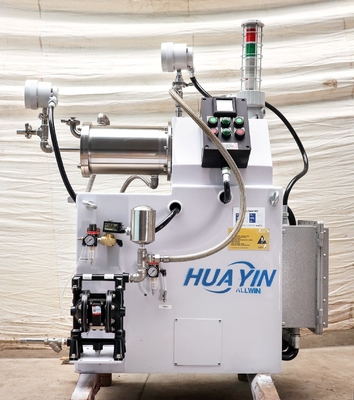

5 L / Liter Explosion Water Based Aro Diaphragm Pump Horizontal Static Discharge Small Wet Grinding Mill

This small horizontal wet grinding mill is widely used in small batch production, which can be easily to switch to other colors or materials for production. The ex-proof wet grinding mill is rather safe for both water based materials and oil based materials.

The Ingorsoll Rand ARO disphragm pump is international brand with great quality, nearly no fault when using to feed up the materials. Double end mechanical seal owns patent technology and anti-theaft technology, manufactured by high precesion CNC machine, to ensure steadily operation.Allwin offers the great service of pre-sale, on-sale, after-sale. All the wet grinding machines are tested before shipping, and then shipping with instruction for installation and maintanence.Allwin can also offer vedio installation, or online service.

The Application filed:

1. Paint and Coating,

2. Pigment and dyestuffs,

3. Printing inks/ Digital inkjet ink,Gravure inks,

4. Pesticide and Agrochemical industry,

5. Non-metallic minerals,

6. Paper and Paper making chemical.

Technical data of horizontal small wet grinding bead mill:

No	main parameters	SP5	Note
1	Motor Power	7.5KW	(ex-proof, or non ex-proof available)
2	Effective volume of grinding chamber (L)	5	Other volumes can be customized
3	Water pressure (MPa)	0.3
4	Cooling water consumption (L/min)	2-2.5m³/h	Advise offer the Cooling water less 10°C
5	Dimensions:LWH (mm)	10006501100
6	Weight (kg)	550-650

Configuration instructions of small wet grinding mill

No	Main parts	SP 5 explosion-proof	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	Silicon carbide ceramics
3	Material of Dispersing shaft	40Cr with hard chromium plating	Brand: NSK
4	Material of Dispersing disk (agitator disk)	SUS 304 stainless steel, Cr12Mov alloy steel	customized service offered
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Double end mechanical seal with mandatory screwing-cooling system
8	Feeding pump	1” ARO diaphragm pump	IngersoII Rand
9	Operation control system	buttom colum type or PLC touching type
10	Fasteners and connecting parts	Stainless steel clamp-type connecting parts

Display of details:

1. dispersing structure

2. key spare parts

Shipping and delivery

Aro Diaphragm Small Batch Production Wet Grinding Mill Water Bead Grinding Machine 2

After sales service:

1. Video instructions for installation and running test, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.

Tag:

Place of Origin:	China
Brand Name:	AllWin
Certification:	ISO9001
Model Number:	SP5

Minimum Order Quantity:	1 Unit
Price:	USD10000---150000/unit
Packaging Details:	Wooden boxes
Delivery Time:	20-30 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	30 units /month
