Product Description:
The Horizontal Bead Grinding Machine is a high-efficiency and wearable steel grinding equipment for a variety of industries, from paint, ink, coating, pesticide, chemical fiber, food additive, battery material, paper, titanium dioxide, etc. Its grinding process, also known as the horizontal bead milling process, is suitable for the mass production of materials with high viscosity and fineness.

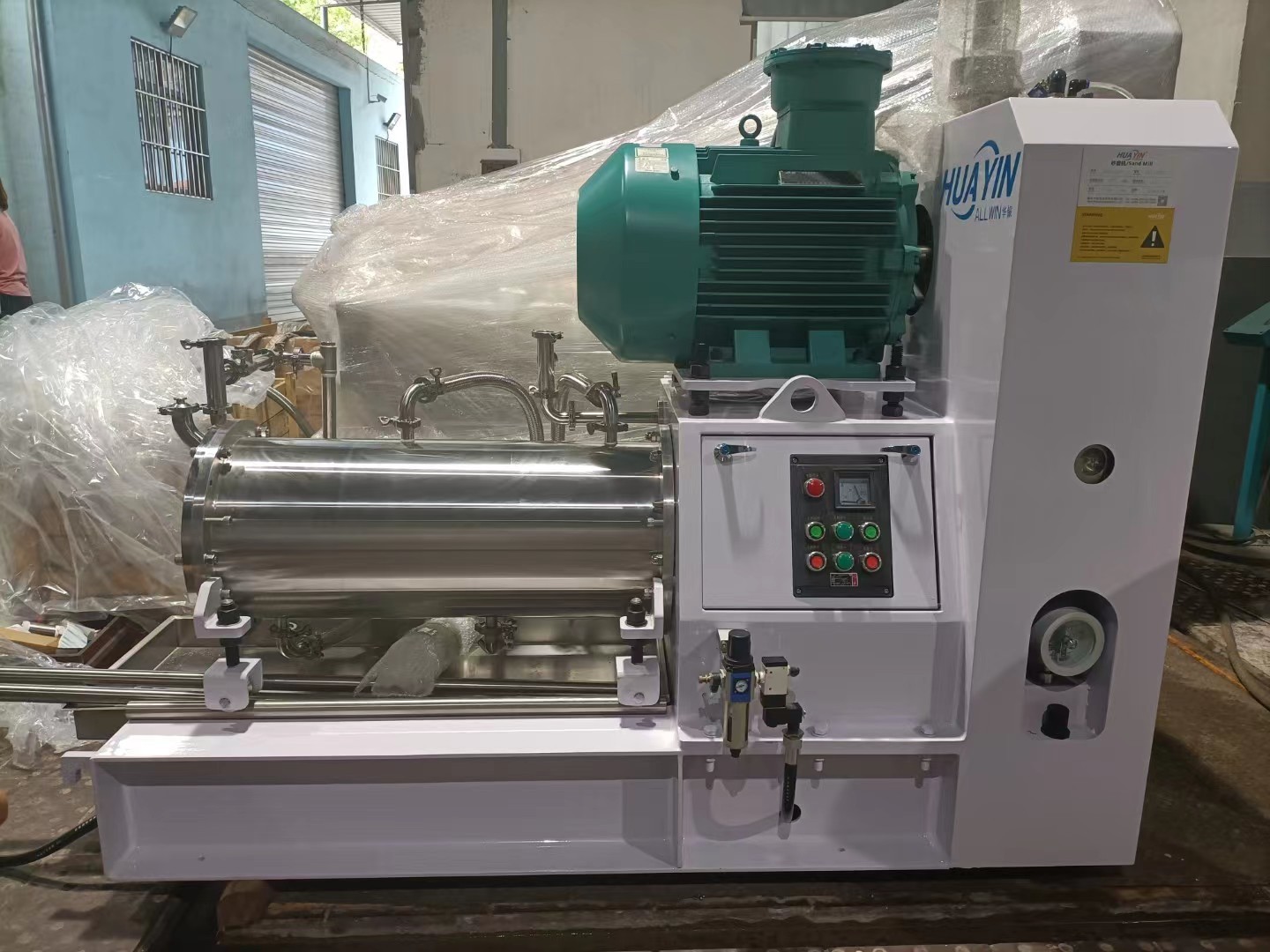

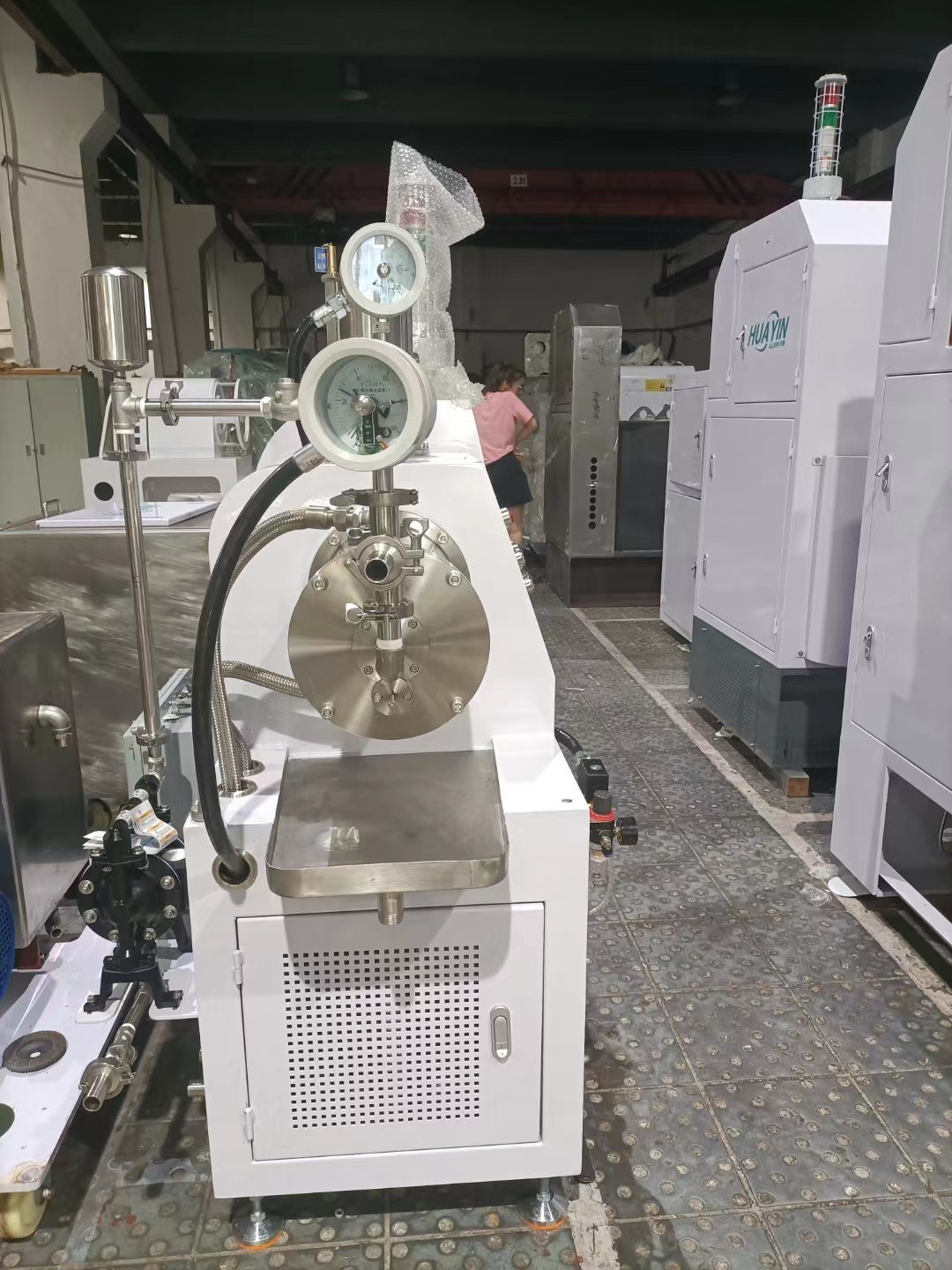

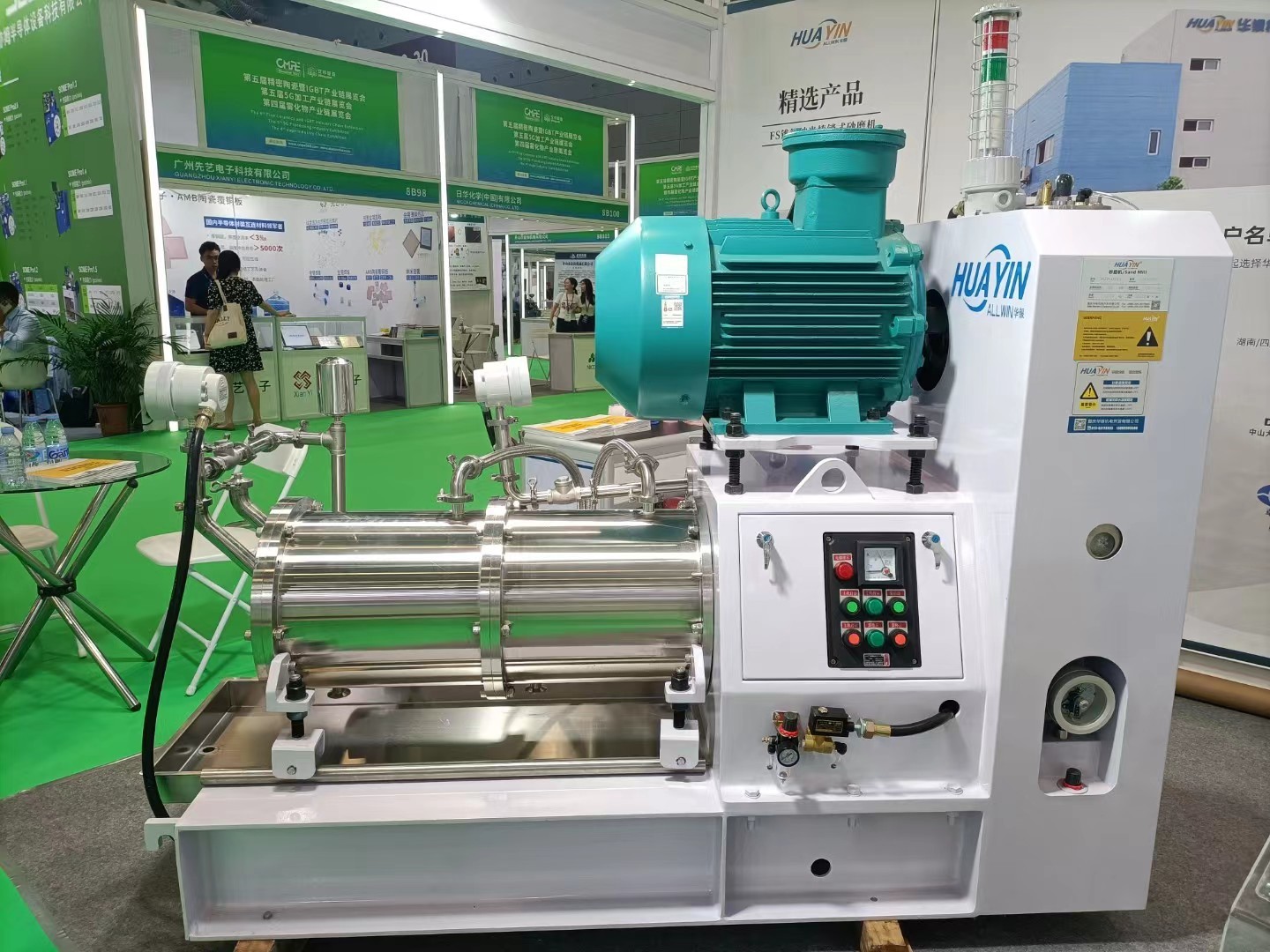

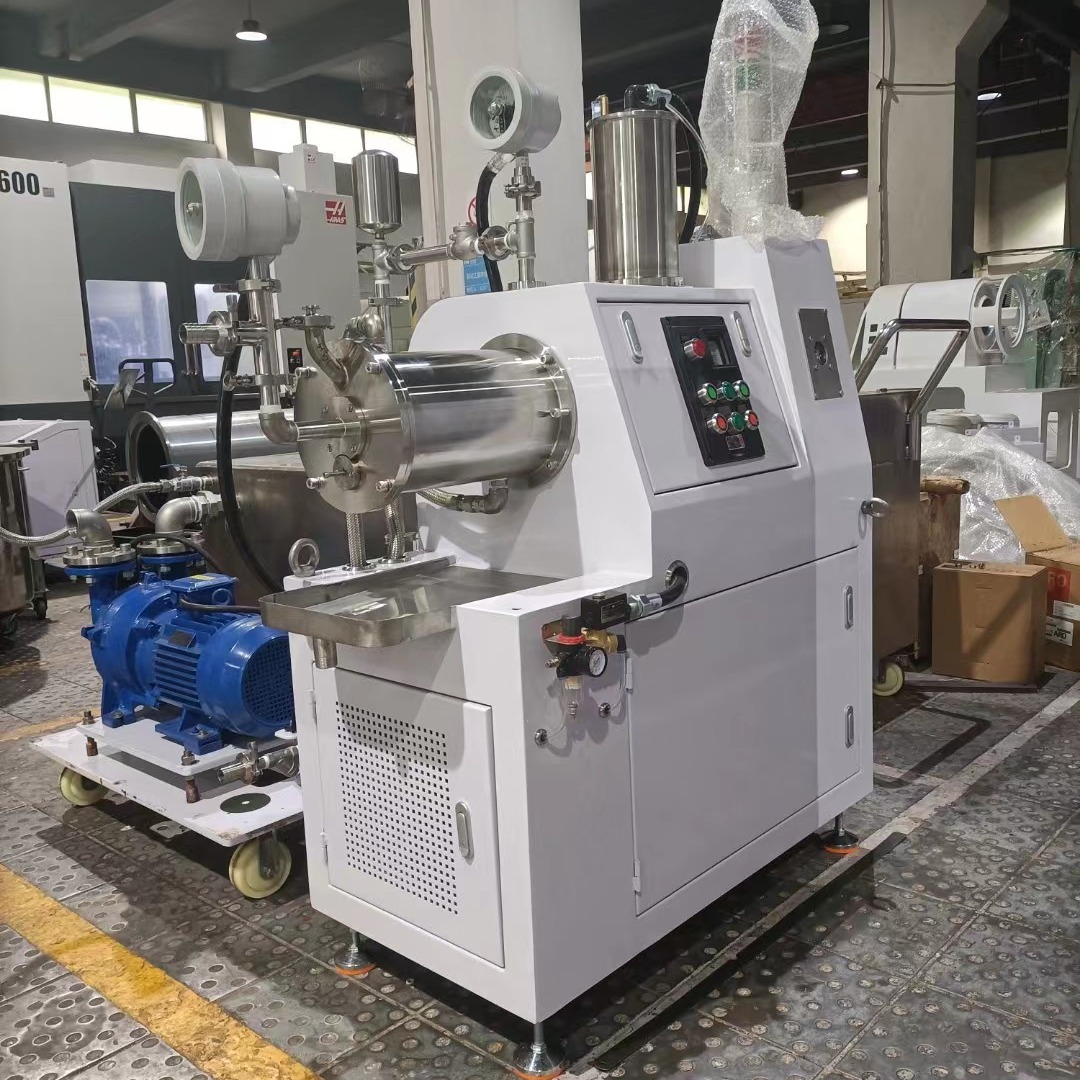

The Horizontal Bead Grinding Machine is composed of main framwork, motor, chasis, grinding chamber, grinding system and cooling system, alarm system. main materials of inner chamber and grinding system are stainless steel , wearable steel, silicon carbide ceramics, PU for option, with a a standard alarm system. It is highly efficient and can achieve high-quality grinding results.
The Horizontal Bead Milling Equipment is widely used for its excellent grinding effect, high productivity and low energy consumption. It is an ideal choice for grinding materials with high viscosity and fineness.
Features:
- Name: Micro/ Sub-micro wet grinding bead grinder
- Grinding Manner: Coarse grinding/ Finishing grinding
- Material: Stainless Steel, Wearable Steel, Silicon Carbide Ceramics, PU
- Application: Paint, Ink, Coating, Pesticide, Chemical Fiber, Food Addictive, Battery Materials, Paper, Titanium Dioxide, etc.
- Alarm system: Standard
- Electronic Appliance: Standard(Non-explosion) / Explosion
- Features: Easy To Operate, Long Work-life, Low Energy Consumption, Lower Temperature
- Keywords: Horizontal Bead Grinding Machine, Horizontal Bead Milling Machine, Stainless Steel, Wearable Steel, Silicon Carbide Ceramics, PU, Easy To Operate, Long Work-life, Low Energy Consumption, Lower Temperature
Technical Parameters:
| Name |
Horizontal Bead / Sand Mill |
| Type |
Disc Type, Pin Type, Compound Type(recommendation according to various conditions) |
| Voltage |
380V or customized |
| Features |
Easy To Operate, Long Work-life, Low Energy Consumption,lower Temperature |
| Application |
Paint, Ink, Coating, Pesticide, Chemical Fiber, Food Addictive, Battery Materials, Paper, Titanium Dioxide,etc |
| Alarm system |
Standard |
| Material |
Stainless Steel,wearable Steel, Silicon Carbide Ceramics, PU |
| Efficiency |
at least 15% Higher than normal bead grinder |
| Warranty |
12 months after received the machines, not including vulnerable parts |
| Chamber Volume |
0.5(labortory bead mill)---250 Liters(industrial batch processing bead mill) |
Applications:
The Allwin Horizontal Bead / Sand Mill with model number SP/AP/HZ PLUS is made in CQ and certified by ISO9001. This Horizontal Bead Mill is efficient and requires a minimum order quantity of 1 Unit, and delivered in 25-60 days, with payment terms of T/T. The Supply Ability is 30+ units, and can be used in the application of Paint, Ink, Coating, Pesticide, Chemical Fiber, Food Addictive, Battery Materials, Paper, Titanium Dioxide, etc.
FAQ:
- Q: What is Horizontal Bead Mill?
- A: Horizontal Bead Mill is a kind of grinding equipment which is mainly used for grinding liquid material.
- Q: What is the Brand Name of Horizontal Bead Mill?
- A: The Brand Name of Horizontal Bead Mill is Allwin.
- Q: What is the Model Number of Horizontal Bead Mill?
- A: The Model Number of Horizontal Bead Mill is SP/AP/HZ PLUS.
- Q: Where is the Place of Origin of Horizontal Bead Mill?
- A: The Place of Origin of Horizontal Bead Mill is CQ.
- Q: What is the Minimum Order Quantity of Horizontal Bead Mill?
- A: The Minimum Order Quantity of Horizontal Bead Mill is 1 Unit.
- Q: What is the Packaging Details of Horizontal Bead Mill?
- A: The Packaging Details of Horizontal Bead Mill is wooden case.
-
-
-
