Large Flow 5-10um Inks Wet Grinding Mill Bead With Touch Screen higher efficiency
The Features of Wet Grinding Mill:
1. The sand mill uses intelligent double mechanical sealing with self-lubricate liquid system of stable and reliability.
2. Great flow rate and super fine discharging: purely static centrifugal device originally.
3.The chamber of Wet Grinding mill is easy and convenient to be disassembled, easy to clean for different colors.
4.Plentiful materials could be chosen for inner chamber and dispersing disks from stainless steel, polyurethane, wearable steel, wearable stainless steel and ceramics, could meet different requirements of color, temperature.
5.Easy operation and low maintanience.
Technical Parameter of 60L of Wet Grinding Mill
| NO. |
Main parameter |
SP60 |
Note |
| 1 |
Main motor power(kW) |
60 |
3phase,230V 50Hz |
| 2 |
Effective Volume
(L)
|
37 |
|
| 4 |
Water presure Mpa |
0.3 |
|
| 5 |
Cooling water consumption
(L/min)
|
2.5 -3m3/h
|
The lower limit can be
selected for the water consumption, in case that the cooling water temperature is lower than 10℃.
|
| 6 |
Overall dimension (mm) |
1940*920*1900 |
|
| 7 |
Weight (kg) |
1600 |
|
The Configuration instructions of of Wet Grinding Mill:
1. Outer Chamber: 304 stainless steel
2. Inner Chamber: 9Cr18Mo alloy steel, other materials (Silicon Carbide Ceramics, SUS 304 stainless steel) are also available
3.Dispersing shaft: 40Cr with hard chromium plating
4.Dispersing disk: Cr12Mov
5.Mechanical seal: Double Mechanical seal with Pressure of 0.45 Mpa
6.Feeding and discharging end covers on the chamber: 304 stainless steel
7.Turbine centrifugal separator and pigs: 304 stainless steel and YG6 pines.
8.Static discharge screen ring: 304 stainless steel screen ring with 304.Gaps: 0.5mm.
9.Feeding pump: 1" ARO pneumatic diaphragm pump.

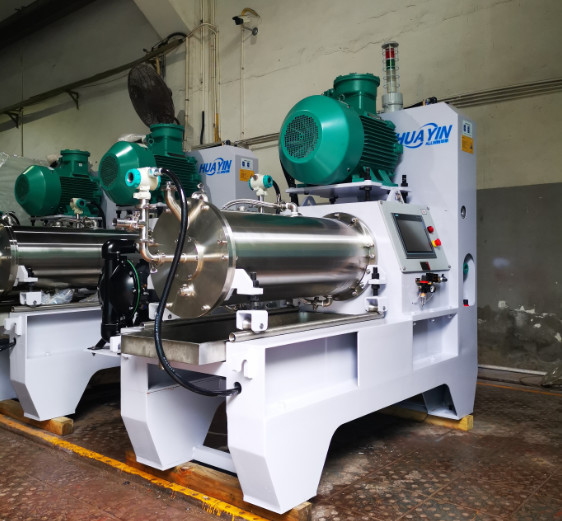

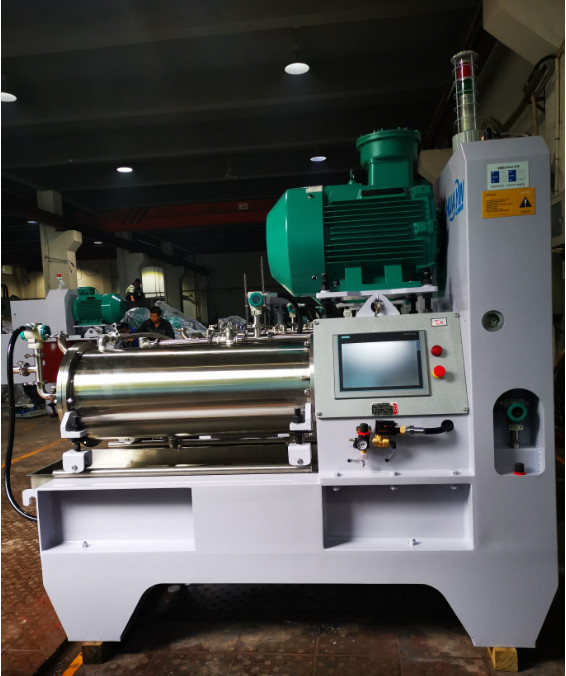

The Detailed production show
The Application filed:
Paint and Coating,
Pigment and dyestuffs,
Printing inks/ Digital inkjet ink,Gravure inks,
Medicine and Cosmetics
,Pesticide and Agrochemical industry,
Food and food processing,
Non-metallic minerals,
HI-Tech nanometer products,
Paper and Paper making chemical.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity, production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be selected according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
