Detail Information

Inner Chamber Matrial:	9Cr18Mo, SUS 304 Stainless Steel	Outter Chamber Material:	SUS 304 Stainless Steel
Effective Volume:	10 L	Motor Energy:	18.5KW
Ex-proof Performance:	Explosion-proof, Non Explosion-proof	Operation Control:	Touching Screen
Application:	Baterry Materials, New Materials, MLCC	Warranty:	12 Months
Dispersing Type:	Cone Barrel Rod Type	Discharging Manner:	Dynamic-axis Discharging
Finished Fineness:	100nm	Grinding Media:	0.05-1.0mm
Highlight:	Wet Grinding Horizontal Bead Mill , Nano Grinding Horizontal Bead Mill , Horizontal Bead Mill For New Materials

Product Description

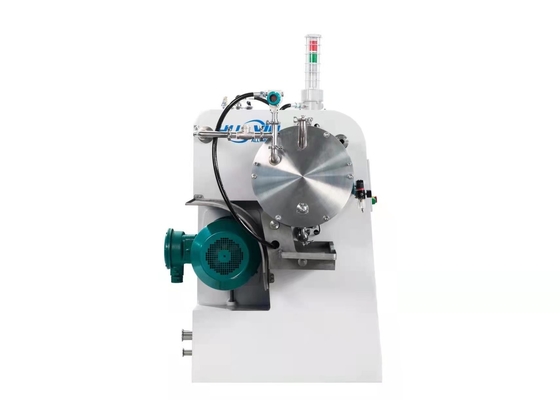

High Efficiency Large Flow Nano Wet Grinding Horizontal Bead Mill For New Materials

Cone barrel rod type nano griding horizontal bead mill is an very high technical and smart grinding mills, which can calculate and reduce the energy of grinding with different slurry flow path. and the energy saving capability is strong enough, and final fineness can reach to very small, according to materials final requirement. Usually applicated in postive and negative materials of baterry, MLCC,electric inks, etc.

1. Technical data of nano grinding bead mill

No	Main Parameters	FS10 bead mill	Notes
1	Motor power (kW)	18.5KW	Ex-proof/non ex-proof available
2	Effective volume of grinding chamber (L)	10L	volume can be suggested according to different grinding materials and usages
3	Water pressure (MPa)	0.3
4	Cooling water consumption (L/min)	2.0 -2.5 m³/h	Advision: Users offer the Cooling water less 10°C
5	Dimensions:LWH (mm)	150012002000
6	Weight (kg)	1000	Different as for different chamber volume

2. Configuration Instructions

No	Main parts	FS10	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	9Cr18Mo alloy steel, SUS 304 stainless steel	different mateials for choice
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of dispersing system	304 stainless steel,9Cr18Mo wearable steel	Choose what you need
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Dynamic discharge screen ring	dynamic cone barrel screen ring with very small gaps (gaps can be customized according to differnet fineness requirment)	zirconia beads can vary from 0.05 to 1.0mm
7	Mechanical seal	Double end mechanical seal	patent technology
8	Feeding pump	1" ARO diaphragm pump	IngersoII Rand

3. Customer investigation

4. Exhibition show

5. The package and shipping:

Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow 2

6.other related products

We can also offer other related products in production lines, like disperser, moving tank, zirconia bead, grinding medium charging&discharging machines, etc. there are some pictures for your referrence.

We warmly welcome all potential customers to visit our factory, also welcome to send materials for testment.

If you are interested in our machines, please feel free to contact us, and we will give response in 24-48 hours.

Tag:

Place of Origin:	Chongqing,China
Brand Name:	ALLWIN
Certification:	ISO9001
Model Number:	FS10

Minimum Order Quantity:	1 unit
Price:	USD 53000---65000 Per Unit
Packaging Details:	Wooden Boxes
Delivery Time:	20-30 Work Days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	30 Units per Month
